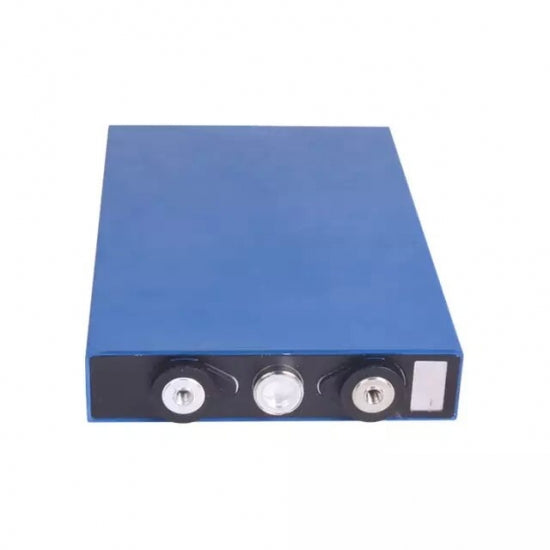

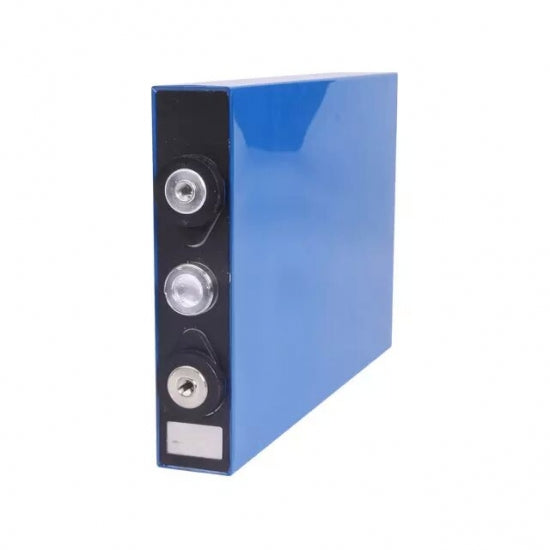

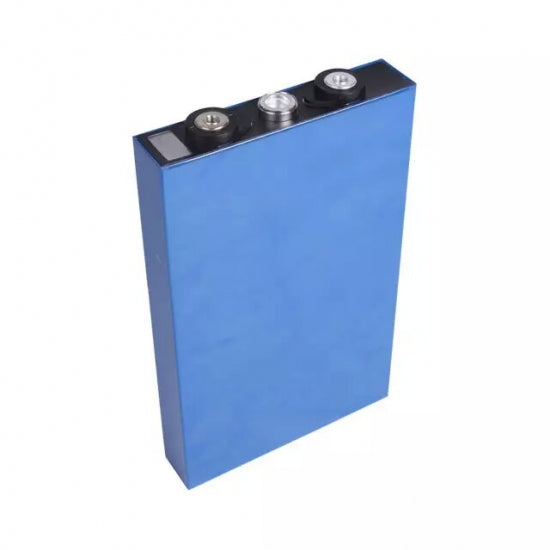

80Ah 120ah Prismatic Cells 24v Lithium Battery Pack
80Ah 120ah Prismatic Cells 24v Lithium Battery Pack
Nominal Voltage | 3.2V |
Capacity | 80Ah |
Charging Current | Standard Charging: 16A (0.2C rate) Max. Charging: 80A (1C rate) |
Max. Discharging Rate | Max. Continuous Discharging: 2C (160A) Max. Peak Discharging: 3C(240A) |
Cut-Off Voltage | Charging: 3.65V Discharging: 2.0V |
Internal Resistance | ≤ 1mΩ (At 0.2C rate, 2.0V cut-off) |
Dimensions | 30*135*220mm |
Weight | 1.98kg |
Charge Cut-off Voltage | 15.6V (3.9V per cell) |
Discharge Cut-off Voltage | 8V (2.0V per cell) |
Net Weight | 6kg |
Dimensions | 280x174x190mm |
Working Temperature | Charging: 0℃~45℃ Discharging: -20℃~60℃ |
Storage Temperature | ≤1month: -10–45℃ ≤3month: 0–30℃ ≤6month: 20±5℃ |
Life Cycle | >2000 times (80% of initial capacity at 0.2C rate, IEC Standard) |
Details
Features
- Faster charge compared with other lithium-ion batteries, it can be safely charged at 10C
- Recharge efficiency exceeding 98% compared to other carbon based batteries
- High stability, high security, green and eco-friendly
- Extensive usability: can be used in wind and solar energy storage power, traffic signals, solar hybrid street lighting
